waterproof porous stainless steel relative humidity probe RHT20 RHT35

waterproof porous stainless steel relative humidity probe RHT20 RHT35

Short Description:


  • Brand: HENGKO
  • MOQ: 100 PCS
  • Payment: T/T
  • Lead Time: The production process takes 25-35 days, please wait patiently, or confirm the delivery date with our salesman
  • Certification: RoHS, ISO9001...
  • OEM/ODM: Available
  • Product Detail

    Product Tags

    hengko advantageHENGKO soil moisture module adopts high precision RHT series sensor equipped with a sintered metal filter shell for large air permeability, fast gas humidity flow, and exchange rate. The shell is waterproof and will keep water from seeping into the body of the sensor and damaging it, but allows air to pass through so that it can measure the humidity (moisture) of the environment. It has been widely used in HVAC, consumer goods, weather stations, test & measurement, automation, medical, and humidifiers, especially performing well in extreme environments like acid, alkali, corrosion, high temperature, and pressure.



    HENGKO digital temperature humidity detector probe module has excellent performances of high precision: temperature +-0.1°C, humidity +-1.5%RH, multiple outputs: RS485, 4-20mA, 0-10V, 0-5V, switching value ……, various RHT sensor optional, wireless and wired, various probes optional, various sensor housings optional.



    HENGKO temperature and humidity probe detectors can be applied in various fields: telepoint base stations, electronic control cabinets, production sites, storehouses, machine rooms, greenhouses, animal farming, medicine stock and etc. The metallic package enables it to deal with the very dust or other severe circumstances. the wall-hanging style makes it easy to install. split type temperature and humidity sensor made with an IP66 protection grade high-tightness stainless steel sensor porous housing, it can be directly used in harsher environments, such as open-air, sand/dust environment, high humidity environment, corrosive environment, etc.



    Theory: current and inductance
    Temperature range: -20~+100 ℃ -40~+125 ℃
    Humidity range: (0~100)% RH
    Features: Excellent long-term stability,
    Probe housing: sintered stainless steel material, that can be customized



    Want more information or would like to receive a quote?

    Click the Online Service at the top right to contact our salespeople.



    E-mail: ka@hengko.com              sales@hengko.com              f@hengko.com              h@hengko.com





    waterproof stainless steel porous relative humidity probe RHT20 35

    Product Show

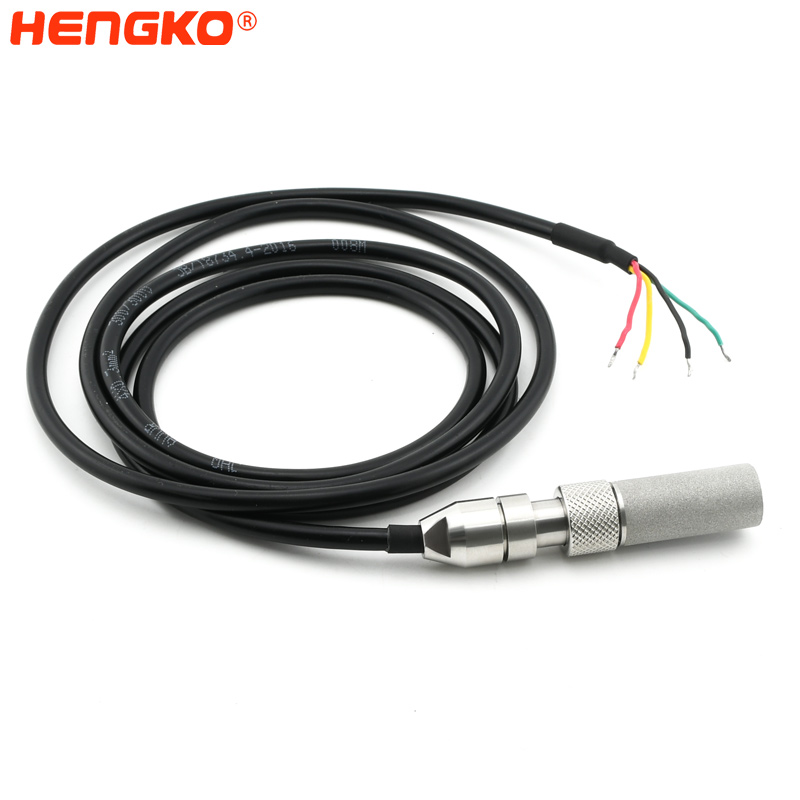

    HENGKO-digital temperature and humidity meter-DSC 5193
    HENGKO-iot sensor platform-DSC 5198HENGKO humidity and temperature sensor applications

    Product Description

    Technical data humidity sensor

    We adopt high precision RHT-H series capacitive digital sensor as the temperature and humidity measurement component. Please select a suitable model for your probe.

    Model   Humidity
    Accuracy(%RH)
    Temperature (℃)   Voltage
    Supply(V)
    Interface  Relative Humidity
    Range(RH)
     RHT-20  ±3.0
    @ 20-80% RH
     ±0.5
    @ 5-60 ℃
    2.1 to 3.6   I2C   -40 to 125 ℃
     RHT-21  ±2.0
    @ 20-80% RH
     ±0.3
    @ 5-60 ℃
    2.1 to 3.6   I2C   -40 to 125 ℃
     RHT-25   ±1.8
    @ 10-90% RH
     ±0.2
    @ 5-60 ℃
    2.1 to 3.6   I2C   -40 to 125 ℃
     RHT-30  ±2.0
    @ 10-90% RH
     ±0.2
    @ 0-65 ℃
    2.15 to 5.5   I2C   -40 to 125 ℃
     RHT-31  ±2.0
    @ 0-100% RH
     ±0.2
    @ 0-90 ℃
    2.15 to 5.5   I2C   -40 to 125 ℃
     RHT-35  ±1.5
    @ 0-80% RH
     ±0.1
    @ 20-60 ℃
    2.15 to 5.5   I2C   -40 to 125 ℃
     RHT-40  ±1.8
    @ 0-100% RH
     ±0.2
    @ 0-65 ℃
    1.08 to 3.6   I2C   -40 to 125 ℃
     RHT-85  ±1.5
    @ 0-100% RH
      ±0.1
    @20 to 50 °C
    2.15 to 5.5   I2C   -40 to 125 ℃

    Can't find a product that meets your needs? Contact our sales staff for OEM/ODM customization services!Custom Flow Chart sensor hengko certificatehengko Parners
