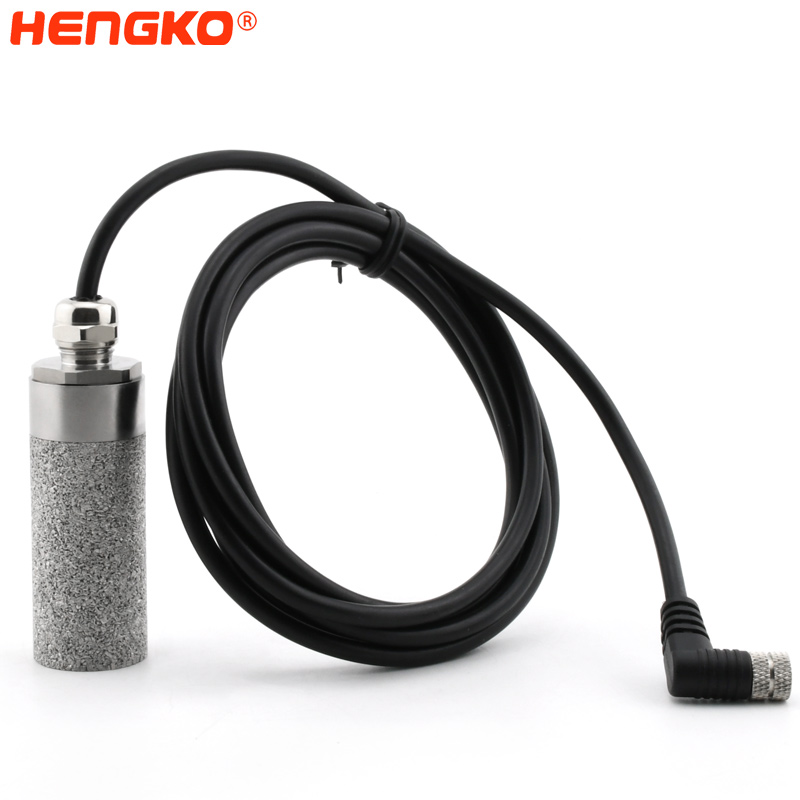

Corrosion-resistant IP65/IP66 housing used in compressed air systems
HENGKO temperature and humidity module adopt high precision RHT series sensor equipped with a sintered metal filter shell for large air permeability, fast gas humidity flow, and exchange rate. The shell is waterproof and will keep water from seeping into the body of the sensor and damaging it, but allows air to pass through so that it can measure the humidity (moisture) of the environment. It has been widely used in HVAC, consumer goods, weather stations, test & measurement, automation, medical, and humidifiers, and especially perform well in extreme environment like acid, alkali, corrosion, high temperature, and pressure.
Theory: current and inductance
Temperature range: -20~+100 ℃ -40~+125 ℃
Humidity range: (0~100)% RH
Features: Excellent long-term stability,
Probe housing: sintered stainless steel material, that can be customized
Want more information or would like to receive a quote?
Click the Online Service at the top right to contact our salespeople.
E-mail:
ka@hengko.com sales@hengko.com f@hengko.com h@hengko.com
RS485 High accuracy low dew point sensors with corrosion-resistant IP65/IP66 housing used in compressed air systems
Technical data humidity sensor
We adopt high precision RHT-H series capacitive digital sensor as the temperature and humidity measurement component. Please select a suitable model for your probe.
| Model | Humidity Accuracy(%RH) |
Temperature (℃) | Voltage Supply(V) |
Interface | Relative Humidity Range(RH) |
| RHT-20 | ±3.0 @ 20-80% RH |
±0.5 @ 5-60 ℃ |
2.1 to 3.6 | I2C | -40 to 125 ℃ |
| RHT-21 | ±2.0 @ 20-80% RH |
±0.3 @ 5-60 ℃ |
2.1 to 3.6 | I2C | -40 to 125 ℃ |
| RHT-25 | ±1.8 @ 10-90% RH |
±0.2 @ 5-60 ℃ |
2.1 to 3.6 | I2C | -40 to 125 ℃ |
| RHT-30 | ±2.0 @ 10-90% RH |
±0.2 @ 0-65 ℃ |
2.15 to 5.5 | I2C | -40 to 125 ℃ |
| RHT-31 | ±2.0 @ 0-100% RH |
±0.2 @ 0-90 ℃ |
2.15 to 5.5 | I2C | -40 to 125 ℃ |
| RHT-35 | ±1.5 @ 0-80% RH |
±0.1 @ 20-60 ℃ |
2.15 to 5.5 | I2C | -40 to 125 ℃ |
| RHT-40 | ±1.8 @ 0-100% RH |
±0.2 @ 0-65 ℃ |
1.08 to 3.6 | I2C | -40 to 125 ℃ |
| RHT-85 | ±1.5 @ 0-100% RH |
±0.1 @20 to 50 °C |
2.15 to 5.5 | I2C | -40 to 125 ℃ |
Can't find a product that meets your needs? Contact our sales staff for OEM/ODM customization services!
