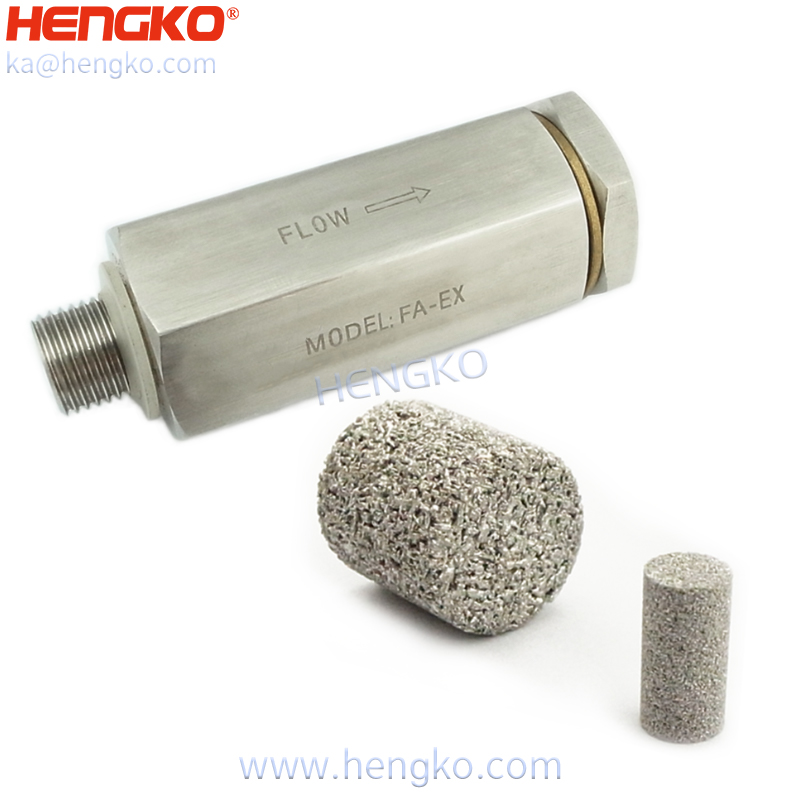

Sintered Metal Fame Arrestors Manufacturer for the Storage and Transportation of Inflammable Liquids, Vapours and Gases
Flame Arrestors are safety devices that allow the flow of combustible gases while preventing ignition. The Flame Arrestorprevents the flame from transferring to a different area of a device by cooling or quenching a flame front or dampening combustion wave. it is designed to absorb and dissipate the heat of a flame for specific operating and flow conditions. Porous metal flame arrestors are used in many flight and marine applications. For flight, it’s been integrated into electronics boxes for both commercial and military aircraft, serving a function of both a breather plug (allowing the pressure to equalize between the box and atmosphere) and protecting against flames in the event of an unwanted explosion.
Features:
Superior Mechanical Strength
Precise Flow Control and Pressure RestrictionUniform Porosity
Non-Shedding Media
Excellent Joint Strength and Sealing integrity (joined to other parts)
Media maintains integrity at high temperatures
Applications:
Process and Analytical Gas Applications:
Venting for Explosion Proof Enclosures
Pressure Equalization for Combustible Gas Pressure Regulators
Handling of Combustible Sample Gas for Analyzers and Monitors
Flashback Prevention for Welding Torches
lgnition Prevention in Gas Stacks and Storage Tank Vents
inhibit the Spread of Fire or Explosions in Ductwork and Process Piping
Backfire Flame Arrestor for Marine Engines and Motors
Oxygen Service - Special Processing Available
Benefits of Porous Metal:

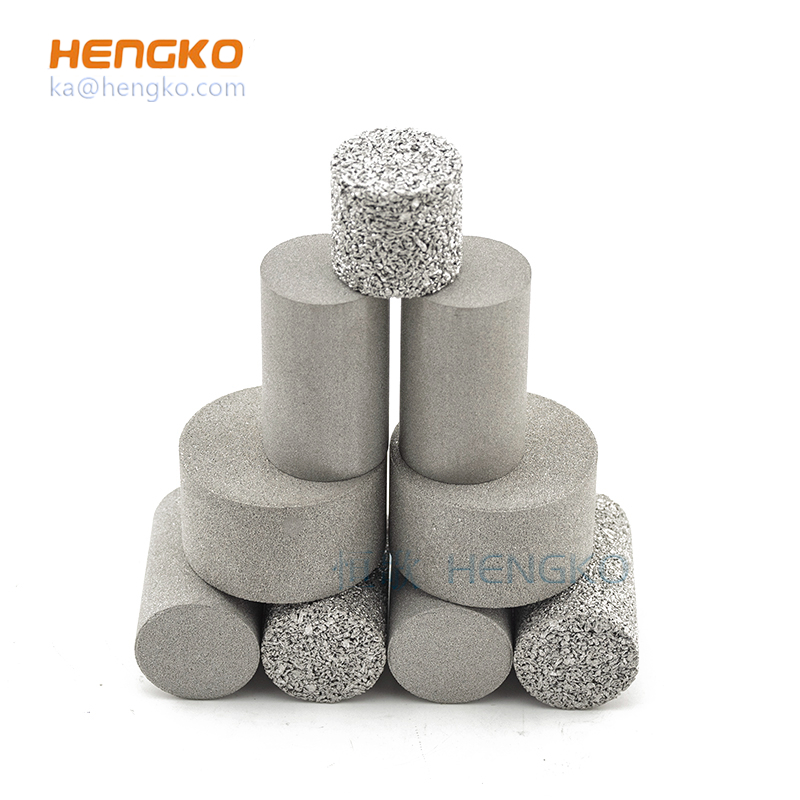

HENGKO manufactures filter elements in a broad range of materials, sizes, and fittings so they can be easily specified with the characteristics and configurations customers require. We can incorporate custom features or create completely original filter element designs for specialized needs. Our filter elements also come in a variety of different alloys, each with its own special benefits and application purposes. They are a popular choice for many industrial filtration applications due to their heat, corrosion, and physical wear resistance.
The flow restrictors are available in a wide range of porosity to ensure the perfect flow rate for the desired applications. A porous metal flow restrictor has a porous surface that is 500 times as large as that of similar passages without porous material. The advantage is that a laminar flow will be created with a minimal disturbance in speed, pressure, and temperature as compared to an orifice.
Want more information or would like to receive a quote?
Click the Online Service at the top right to contact our salespeople.
Sintered stainless steel flame arresters and fittings for the storage and transportation of inflammable liquids, vapors and gases
Can't find a product that meets your needs? Contact our sales staff for OEM/ODM customization services!
