The Feature and Application of Powder Sintered Filter Element

Main Features of Powder Sintered Filter

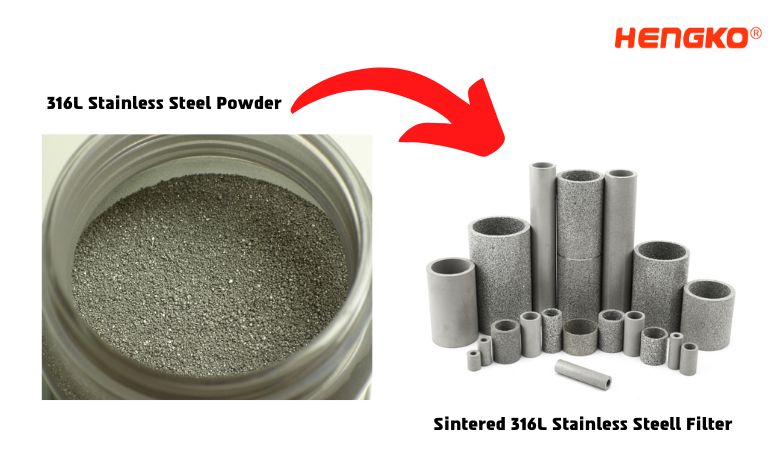

Powder-sintered filter elements are a type of filter that is made by sintering metal powders together at high temperatures. These sintered filter elements are known for their high strength and durability, making them suitable for various high-pressure and high-temperature applications.

1. One of the key features of powder-sintered filter elements is their high porosity.

It allows for a large amount of air or fluid to flow through the filter, making them highly efficient at removing impurities and particles from the air or fluid. Additionally, the pore size of the filter can be controlled through the sintering process, allowing for precise filtration of specific particle sizes.

2. Another feature of powder-sintered filter elements is their high-temperature resistance.

They can withstand temperatures up to 1000°C and resist various corrosive chemicals, making them suitable for use in a wide range of industrial applications.

3. Powder-sintered filter elements are also known for their high strength and durability.

They are made from metal powders and are sintered together at high temperatures, resulting in a filter that can withstand high pressure and high flow rates. It makes them ideal for high-pressure applications such as compressed air systems, gas turbine engines, and hydraulic systems.

4. Powder-sintered filter elements are also highly customizable.

They can be made in a variety of shapes and sizes and can also be made with different metals to suit the specific needs of the application. Additionally, the pore size and porosity of the filter can be adjusted to suit the specific filtration requirements of the application.

In summary, powder-sintered filter elements are highly efficient, durable, and customizable, suitable for use in a wide range of high-pressure, high-temperature, and high-flow applications. They are made by sintering metal powders together at high temperatures, resulting in a filter that can withstand high pressure, high temperatures, and various corrosive chemicals. Additionally, you can OEM the pore size, porosity, and shape to suit the specific filtration requirements of the application.

The application is wide of sintered porous stainless steel filters due to its feature. Sintered metal filters made of stainless steel or bronze. As a high-temperature structural metal material can be used in various filtration, sound absorption, flame resistance, high temperature, catalysis, heat dissipation, and adsorption environments. HENGKO sintered steel filter has advantage of hard, anti-corrosion and can be used in high temperature(600℃), is an ideal choice in coastal, humid, regional high salt, industrial production and manufacturing, aerospace, electrochemical, petrochemical, oil drilling and other fields.

HENGKO sintered filter has excellent permeability. Its pores can retain and trap particles and suspended matter

in fluid media such as liquids and gases to achieve the effect of filtration and purification.

Such as the sintered porous stainless steel filters element can be used in the following industries:

1. Filter and separate the sediment in the oil drilling in the petrochemical industry;

2. Aircraft hydraulic oil filtration and purification in the aerospace industry;

3. Gas can be purified in various pipeline filtration, etc.

Not only stainless steel filter can be applied to filtration and purification in various industries, but also Bronze, Titanium, Monel and Aluminum. Sintered metal filters manufacturers HENGKO with more than 20+ years of experience in the filtration industry to provide professional filtration solutions, we service customers in more than 100 countries around the world with high standards and strict inspection procedures, creating more than 30,000 engineering solutions.

Some Popular Application of Powder Sintered Filter Element

The sintered powder filter element is made by compacting and forming a metal or non-metal powder through a sintering process, resulting in a porous material with a specific pore structure. These filters offer superior filtration capabilities, durability, and corrosion resistance. Here are some of the applications of powder sintered filter elements with explanations for each:

1. Chemical Processing:

Explanation: In the chemical industry, processes often involve the use of aggressive chemicals that can corrode or degrade ordinary materials. Sintered powder filter elements made from corrosion-resistant materials, like stainless steel or titanium, can be used to separate solid contaminants from liquid chemicals or to degas liquids. They offer excellent resistance to chemical attack and can be cleaned and reused multiple times.

2. Pharmaceutical and Biotechnology:

Explanation: Ensuring product purity is vital in the pharmaceutical and biotechnology sectors. Sintered powder filter elements offer high filtration efficiency to remove unwanted contaminants, bacteria, or particulates from products. They are also suitable for sterilization methods such as autoclaving, ensuring that they remain free from microbial contamination.

3. Food and Beverage Processing:

Explanation: In food and beverage processing, it's crucial to maintain hygiene and product quality. These filters can be used to purify liquids like juices, wines, and oils by removing particulates, ensuring the clarity of the product. Their ability to be cleaned and sterilized also means they can be reused, reducing costs.

4. Water Treatment and Desalination:

Explanation: Clean water is essential for various industries and consumption. Sintered powder filter elements can be used in pre-filtration stages to remove larger particulates or in final stages for ensuring water purity. In desalination plants, these filters help protect sensitive equipment like reverse osmosis membranes from particulate damage.

5. Gas Filtration:

Explanation: In industries where gas purity is crucial, such as semiconductor manufacturing or medical gas production, sintered powder filter elements can remove particulates and contaminants from gases. Their structure ensures consistent filtration while maintaining optimal flow rates.

6. Hydraulic Systems:

Explanation: Hydraulic systems rely on clean oils to operate efficiently. Contaminated oil can lead to equipment wear and reduced performance. Sintered powder filters can be employed in hydraulic systems to ensure that the oils remain free from particulates and extend the lifespan of the machinery.

7. Catalyst Recovery:

Explanation: In many chemical reactions, catalysts are employed to improve efficiency. However, these catalysts can be expensive, so recovering and reusing them can provide significant cost savings. Sintered powder filter elements can be used to separate and recover catalyst particles from reaction mixtures, ensuring their reuse and minimizing waste.

8. Aerospace and Defense:

Explanation: In aerospace and defense sectors, equipment reliability is crucial. These filters are employed in various systems, from fuel to hydraulic systems, ensuring the removal of contaminants and ensuring optimal performance of the machinery.

9. Battery Production:

Explanation: Modern batteries, like lithium-ion cells, require ultra-pure materials for optimal performance. Sintered powder filter elements can be used in the production processes to ensure that the electrolytes and other battery components are free from contaminants.

10. Hot Gas Filtration:

Explanation: Some industrial processes release hot gases that need to be filtered before release or reuse. Sintered powder filter elements can withstand high temperatures and are effective in removing particulates from hot gases, ensuring environmental compliance and process efficiency.

These are just a few applications of the versatile powder sintered filter elements. Their unique combination of structural integrity, precise filtration capabilities, and chemical resistance make them suitable for a wide range of industrial processes.
