What Is Porous Sintered Metal?
Porous sintered metal is a product created by heating metal powders below their melting point, allowing the particles to bond through diffusion. This process creates a material with controllable porosity that enhances various properties such as permeability, mechanical strength, and heat resistance.
Historical Background
The history of sintered metal traces back to the ancient civilizations when the process was used to create intricate jewelry and tools. Modern sintering techniques have evolved, but the core concept remains the same.
Manufacturing Processes
The creation of porous sintered metal involves several key steps, including:
- Powder Preparation: Selecting the right type and size of powder.
- Compaction: Pressing the powder into a desired shape.
- Sintering: Heating the compacted powder below its melting point.
- Finishing: Additional treatments to achieve specific properties.
Material Properties
The properties of porous sintered metal are tailored according to their end use. These include:
- High permeability
- Mechanical strength
- Thermal conductivity
- Chemical resistance
8 Main Function of Porous Sintered Metal

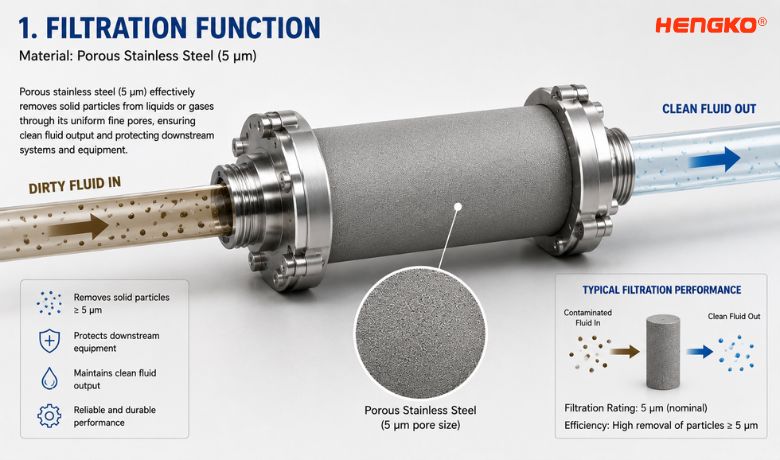

1. Filtration Function
One of the most significant functions of porous sintered metal is filtration. Whether in automotive, pharmaceutical, or food industries, its high permeability allows efficient separation of particles from fluids.

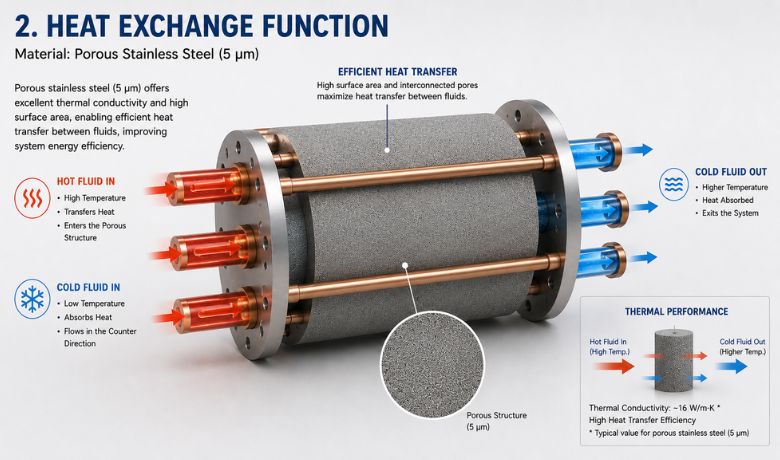

2. Heat Exchange Function
Porous sintered metal's excellent thermal conductivity makes it an optimal choice for heat exchangers in various applications like cooling systems in automobiles and industrial processes.

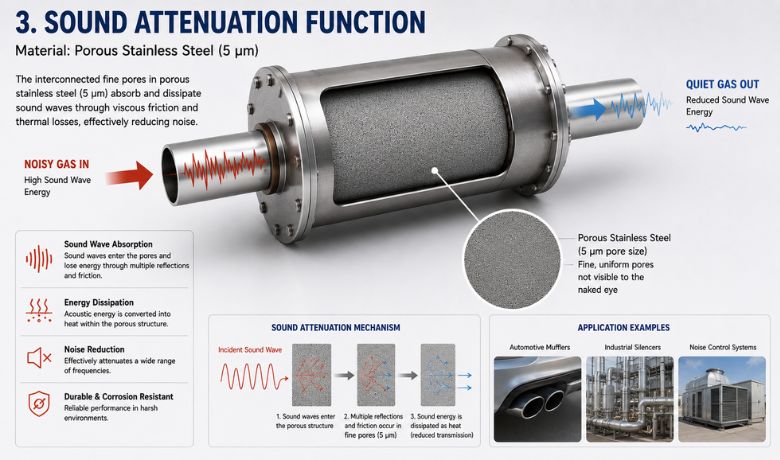

3. Sound Attenuation Function
The porous structure helps in dampening sound waves, making it useful in noise control applications, such as mufflers in vehicles or industrial machinery.

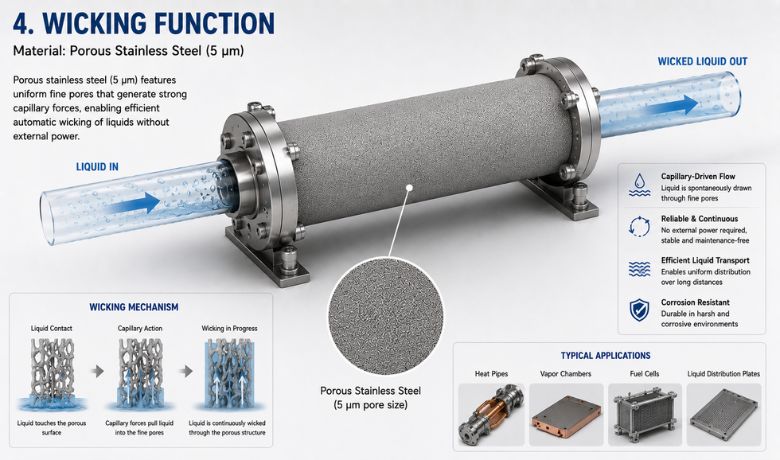

4. Wicking Function
The capillary action in porous sintered metal's structure aids in wicking fluids. This function is highly valuable in applications like oil cooling in engines.

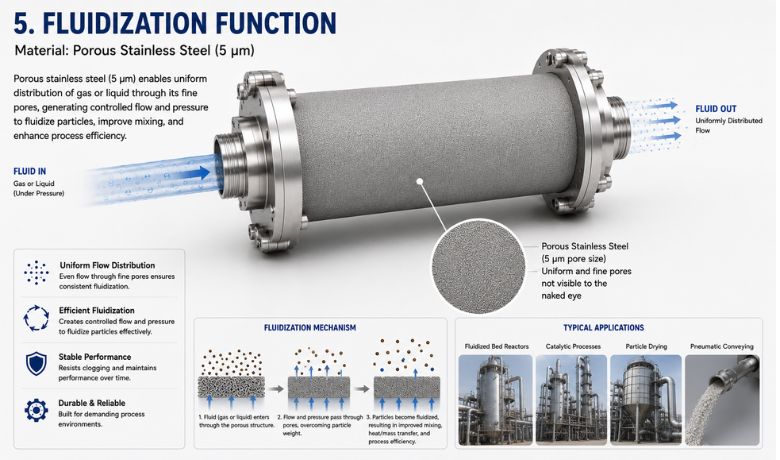

5. Fluidization Function
In chemical processes, porous sintered metal supports the fluidization of solid particles, leading to increased reaction rates and efficiency.

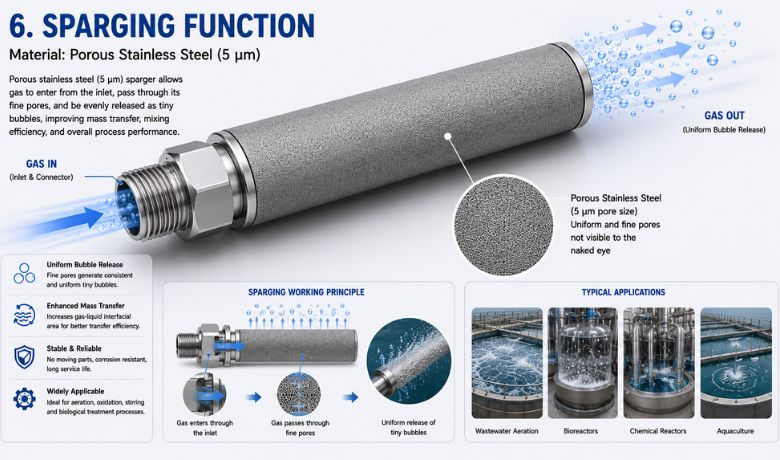

6. Sparging Function
Used in aeration and gas distribution systems, the sparging function of porous sintered metal ensures uniform gas flow and bubble formation.

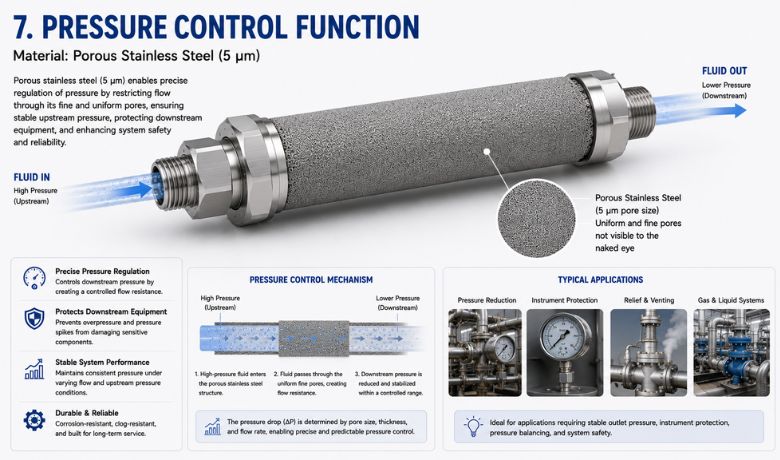

7. Pressure Control Function
Porous sintered metal is utilized in pressure control applications in a variety of industries. Its tailored porosity enables it to function as a pressure regulator or damper, aiding in the smooth operation of hydraulic systems, gas flow regulation, and more.

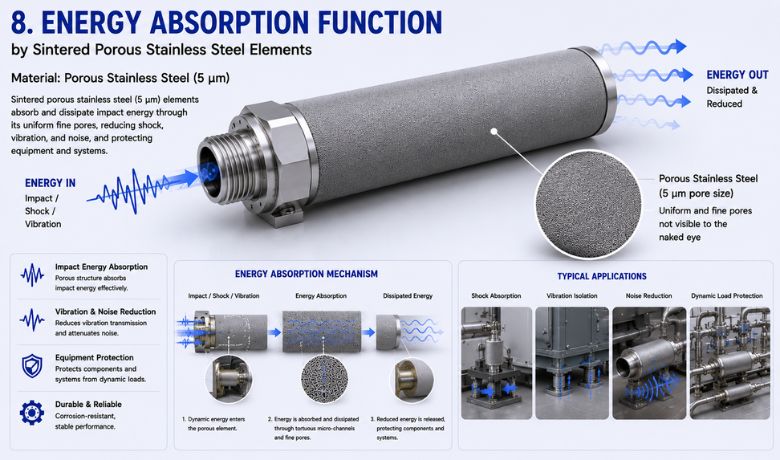

8. Energy Absorption Function
Energy absorption is a critical function where porous sintered metal excels. Its unique porous structure allows it to absorb and dissipate energy, such as in shock absorbers and vibration damping systems. This function is particularly valuable in automotive, aerospace, and industrial machinery to reduce wear and tear and enhance safety.
These eight functions collectively showcase the versatility and adaptability of porous sintered metal. They underline why it's a material of choice for engineers and researchers working on innovative solutions across various domains.
Applications of Porous Sintered Metal
Industrial Applications
From automotive to chemical industries, porous sintered metal's unique functions find numerous applications. Some key areas include filtration systems, heat exchangers, and noise control devices.
Medical Applications
In the medical field, porous sintered metal is used for filters, implantable devices, and drug delivery systems, enhancing healthcare solutions.
Environmental Uses
Environmental applications include water purification and air filtration, contributing to a cleaner and healthier environment.
Future Prospects
With ongoing research and development, the applications of porous sintered metal are expanding into newer horizons like renewable energy and space exploration.
Comparing Porous Sintered Metal
With Other Porous Materials
When compared to other porous materials like ceramics and polymers, porous sintered metal offers higher mechanical strength, thermal conductivity, and chemical resistance.
With Non-Porous Metals
Non-porous metals lack the functional advantages of porous sintered metal, such as permeability and sound attenuation. Therefore, porous sintered metal offers more versatile applications.
Challenges and Solutions
Current Challenges
Despite its benefits, porous sintered metal faces challenges like high production cost, material limitations, and sustainability concerns.
Innovative Solutions
Advances in manufacturing technologies, materials science, and process optimization are addressing these challenges, paving the way for more extensive utilization.
Regulatory Compliance
With global standards and regulations, porous sintered metal manufacturing must comply with environmental and safety guidelines, ensuring responsible usage.
FAQs
1. What is the primary function of porous sintered metal?
The primary function depends on the application; common functions include filtration, heat exchange, and sound attenuation.
2. How is porous sintered metal made?
In short, It's made by heating metal powders below their melting point, followed by compaction and additional treatments.
Porous sintered metals are fascinating materials with applications that stretch across various industries. Their unique properties
arise from their manufacture, which combines metallurgical techniques to create controlled porosity. Here's how it's done:
1. Selection of Raw Materials
- Metal Powders: The base of porous sintered metal is usually a metal powder, which can include materials like stainless steel, titanium, or bronze.
- Pore Forming Agents: To create the pores, specific agents are added, such as polymer beads or other temporary substances that can be removed later.
2. Mixing and Blending
- The metal powders are mixed with pore-forming agents in precise proportions to achieve the desired porosity.
- Additional elements may be added for specific properties like enhanced strength or corrosion resistance.
3. Compaction
- The mixed powder is then compacted into a desired shape, often using a press. This forms a “green” part that holds together but has not yet been sintered.
4. Sintering Process
- The compacted part is heated in a controlled environment, such as a furnace, to a temperature below the melting point of the metal.
- This causes the metal particles to bond together, strengthening the structure, while the pore-forming agents are burned off or removed, leaving the pores behind.
5. Post-Sintering Treatments
- Depending on the application, the sintered metal may undergo additional treatments.
- This could include resizing, impregnation with other materials, or surface treatments to enhance specific properties.
6. Quality Control
- Rigorous testing and quality control measures are implemented to ensure the final product meets the desired specifications and standards.
3. Where is porous sintered metal used?
It's used in various industrial, medical, and environmental applications. and here we list some main industry used till now,
you can find if you can also develop your business for those applications.
Porous sintered metal is used in various applications due to its unique characteristics. Some common uses of porous sintered metal include:
1. Filtration:
Porous sintered metal is used in filtration applications, where it acts as a filter medium to separate solids from liquids or gases. Its porous structure allows for efficient filtration and high dirt-holding capacity.
2. Aeration:
In industries such as wastewater treatment or aquariums, porous sintered metal is employed as a diffuser for aeration. It helps in introducing air or oxygen into liquids, promoting biological processes and improving water quality.
3. Fluidization:
Porous sintered metal is utilized in fluidized beds, where solid particles are suspended in a stream of gas or liquid, allowing for processes like drying, coating, and chemical reactions.
4. Silencers and Mufflers:
Porous sintered metal is used in the automotive industry and other machinery to reduce noise and control exhaust gas flow.
5. Bearings:
In some cases, porous sintered metal bearings are used due to their self-lubricating properties, which can provide low-friction and maintenance-free operation in certain applications.
6. Aerospace:
Porous sintered metal components are used in aerospace applications, such as in rocket nozzles or fuel filters, where high-temperature and high-pressure resistance are required.
7. Medical Devices:
Porous sintered metal finds application in medical devices and implants, such as bone scaffolds, due to its biocompatibility and ability to facilitate tissue ingrowth.
8. Chemical Processing:
Porous sintered metal is used in various chemical processing applications, such as catalyst support structures, gas distribution, and chemical filtration.
These are just a few examples of the many applications of porous sintered metal across different industries, owing to its versatility, high porosity, and customizable properties.
4. What makes porous sintered metal unique?
Its controllable porosity and diverse functions make it unique, offering versatile applications.
5. Is porous sintered metal environmentally friendly?
It can be, depending on manufacturing practices and applications like water purification.
6. What are the current research trends in porous sintered metal?
Current research focuses on enhancing properties, reducing costs, and exploring new applications.
Conclusion
The 8 main functions of porous sintered metal make it an incredibly versatile and vital material in modern engineering.
From its historical roots to current innovations, it continues to impact various sectors, driving technological advancements.
