Sintered filters are a vital component in many industrial processes.

They are essentially metal filters created by fusing tiny metal particles together, through a process called sintering,

at temperatures below the melting point. This unique structure gives them several advantages:

* High porosity:

They contain a large percentage of empty space, allowing fluids to pass through while trapping unwanted particles.

* Strength and durability:

Sintered filters are strong and can withstand high pressures and temperatures.

* Versatility:

They can be made from various metals and come in different pore sizes to suit a wide range of filtration needs.



These qualities make sintered filters essential for various industrial applications. They are main used in:

* Chemical processing:

Filtering out catalysts, separating desired products from reaction mixtures, and removing contaminants.

* Food and beverage:

Clarifying liquids, removing bacteria, and filtering out unwanted particles.

* Pharmaceuticals:

Sterilizing solutions, filtering out impurities, and controlling particle size in medications.

* Automotive:

Filtering fuels, lubricants, and hydraulic fluids.

* Air and gas filtration:

Removing dust, particles, and contaminants from air and gas streams.



Then as following , I will start to introduce you 10 sintered filters elements popular used in market.



1. Stainless Steel Sintered Filters Elements

Stainless steel sintered filters are a highly versatile and reliable type of filter media used extensively in industrial gas

and liquid filtration applications. They are produced by fusing tiny stainless steel particles together through a sintering

process at a high temperature, below the melting point of the steel. This sintering process creates a rigid, porous metal

structure that offers several key properties:

OEM High Quality Sintered Metal Filters


Main Features :

* High strength and durability:

Stainless steel sintered filters can withstand high pressures and temperatures, making them suitable for demanding industrial environments.

* Excellent corrosion resistance:

Stainless steel is naturally resistant to corrosion from a wide range of chemicals, making them ideal for use with harsh fluids.

* High porosity:

Sintered filters have a large percentage of empty space within their structure, allowing for high flow rates of liquids and gases

while effectively trapping particles larger than the pore size.

* Versatility:

They can be fabricated in various shapes and sizes with a wide range of micron ratings to suit a diverse range of filtration needs.

* Ease of cleaning:

Stainless steel filters can be backwashed or cleaned with solvents, making them reusable for extended periods.



Application :

These properties make stainless steel sintered filters a popular choice for numerous applications in industrial gas and liquid filtration, including:

* Gas filtration:

Removing dust, particles, and contaminants from air and gas streams in various industrial processes, including compressed air filtration,

natural gas filtration, and instrument air filtration.

* Liquid filtration:

Filtering out particles, bacteria, and other contaminants from liquids used in chemical processing, food and beverage production,

pharmaceuticals, and water treatment.

* Oil and fuel filtration:

Removing impurities and contaminants from lubricating oils, hydraulic fluids, and fuels to protect equipment and ensure proper operation.

In addition to these general applications, stainless steel sintered filters are also employed in various specialized industrial filtration processes, including:

* Catalyst recovery: Recovering valuable catalysts from reaction mixtures in chemical production processes.
* Sterilization: Sterilizing solutions and gasses in the pharmaceutical and biotechnology industries.
* Emission control: Removing particulate matter and pollutants from gas streams to comply with environmental regulations.





2. Stainless Steel Sintered Mesh Filters

Stainless steel sintered mesh filters are a type of industrial filter media widely used in the food and beverage industry due to

their exceptional properties. They are manufactured by fusing layers of tiny stainless steel mesh together through a high-temperature

sintering process, below the melting point of the steel. This process creates a rigid, porous metal structure that offers several key advantages:



Main Features :

* High strength and durability:

These filters can withstand high pressures and temperatures, making them ideal for demanding food and beverage processing environments.
* Excellent corrosion resistance:
Stainless steel is naturally resistant to corrosion from a wide range of chemicals, including
those found in food and beverages. This ensures safe and reliable filtration.
* High porosity: The sintered mesh structure allows for high flow rates of liquids while effectively trapping particles larger than
the pore size. This is crucial for maintaining efficient filtration without compromising production speed.
* Biocompatibility:
Stainless steel is considered food-grade safe, making it suitable for direct contact with food and beverage products.
* Ease of cleaning:
These filters can be backwashed or cleaned with appropriate solvents, allowing for reusability and extended service life.

These properties make stainless steel sintered mesh filters a popular choice for various applications in food and beverage filtration, including:

Sintered Metal Cartridge Filter OEM Factory



Application :

* Clarification of liquids:

Removing haze, cloudiness, and unwanted particles from liquids such as fruit juices, syrups, beer, and wine.
* Pre-filtration for membranes:
Protecting finer membrane filters from clogging by removing larger particles during multi-stage filtration processes.
* Filtration of water:
Removing impurities and microorganisms from water used in food and beverage production.
* Filtration of syrups and oils:
Ensuring consistent quality and texture by removing particulates from syrups, cooking oils, and other ingredients.
* Air and gas filtration:
Removing dust, contaminants, and bacteria from air used in pneumatic conveying systems or fermentation processes.





3. Bronze Sintered Filters

Bronze sintered filters are another type of metal filter media used in industrial applications. They are manufactured through a similar process

as stainless steel filters, but instead of stainless steel powder, a bronze alloy powder is used as the base material. Here's a breakdown of their

characteristics and manufacturing process:



Main Features :

Characteristics:

* Moderate corrosion resistance:
Bronze offers good corrosion resistance, but not to the same extent as stainless steel.
They may not be suitable for highly acidic or caustic environments.

* Good strength and durability:
Bronze filters can withstand moderate pressures and temperatures, making them appropriate
for many industrial applications.
* High porosity:
Similar to stainless steel filters, they offer high flow rates while effectively trapping particles.
* Cost-effective:
Bronze is generally less expensive than stainless steel, making them a more budget-friendly
option for certain applications.
Manufacturing process:
1. Powder preparation:
Bronze alloy powder is prepared with the desired particle size and composition.
2. Molding:
The powder is packed into a mold according to the desired filter shape.
3. Sintering:
The mold is heated to a high temperature (below the melting point) to fuse the bronze particles together, creating a rigid structure.
4. Deburring and finishing:
Any excess material is removed, and the filter is finished to the desired specifications.



Application :

Due to their characteristics, bronze sintered filters find common applications in fluid power and hydraulic systems:

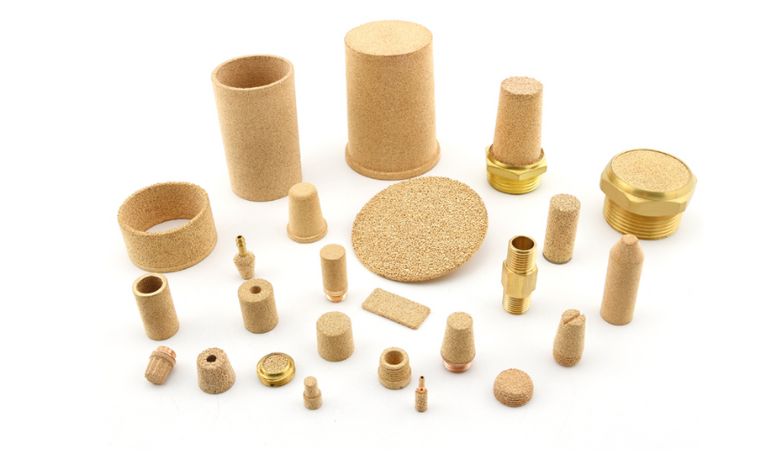

choose right metal bronze filters



* Filtration of hydraulic fluids:

Removing contaminants and wear debris from hydraulic fluids to protect pumps, valves, and other system components.
This helps prevent malfunctions, downtime, and extends equipment life.
* Lubrication system filtration:
Filtering out impurities from lubricants to ensure smooth operation and minimize wear on bearings
and other lubricated components.
* Air filtration:
Removing dust and particles from compressed air used in pneumatic systems to prevent damage to
pneumatic actuators and other air-powered equipment.

While bronze filters offer a cost-effective solution for many fluid power and hydraulic applications, it's important to

consider their limitations in terms of corrosion resistance compared to stainless steel filters for applications involving harsh chemicals or environments.




4. Sintered Polyethylene Filters:

Overview:

sintered polyethylene particles offer excellent chemical resistance to a wide range of organic solvents and acids.
They are lightweight, cost-effective, and have good biocompatibility.

Sintered Polyethylene Filters

Features and Benefits:

* High chemical resistance to organic solvents and acids.
* Lightweight and cost-effective.
* Biocompatible, making them suitable for some pharmaceutical applications.
* Good for air and gas filtration.



Application

Usage in Pharmaceutical and Biotechnological Industries:

Sintered polyethylene filters can be used for pre-filtration stages, air and
gas filtration in bioreactors, and filtering non-aggressive biofluids.




5. Sintered Glass Filters:

Properties of Sintered Glass:

Sintered glass filters are known for their exceptional chemical resistance,
high thermal stability, and excellent filtration efficiency. They are also inert and can be used for sterile filtration.

Sintered Glass Filters

Features:

* Excellent chemical resistance to a wide range of chemicals.
* High thermal stability, allowing for use at high temperatures.
* Inert and can be used for sterile filtration.
* High filtration efficiency for fine particles.



 Application:

Typical Applications in Laboratory and Environmental Testing:

Sintered glass filters are widely used in laboratory filtration, environmental analysis, and research
applications due to their precise filtration capabilities and chemical compatibility.





6. Nickel-based Sintered Filters:

Composition and Features:

These filters are made from sintered nickel powder and offer superior corrosion resistance, high-temperature capabilities,
and good mechanical strength.

Nickel-based Sintered Filters

Advantages:
Excellent corrosion resistance, especially to harsh chemicals and alkalis.
High-temperature capabilities, making them suitable for demanding environments.
Good mechanical strength for high-pressure applications.

Applications

Utilization in High-Temperature and Corrosive Environments:

Nickel-based filters are ideal for filtration in chemical processing plants, high-temperature
gas streams, and applications involving highly corrosive fluids.





7. Sintered Ceramic Filters:

Key Features and Durability:

Sintered ceramic filters are known for their exceptional durability, high-temperature resistance,
and excellent chemical resistance.
They can withstand harsh environments and high-pressure applications.

Sintered Ceramic Filters


Application

Applications in Metal Casting and Air Purification:

Due to their durability and heat resistance, these filters are commonly used in molten metal
filtration during metal casting processes. They are also employed in high-temperature air purification systems.



8. Titanium Sintered Filters:

Benefits, Features, and Resistance Properties:

Titanium-sintered filters offer a unique combination of high strength, excellent corrosion resistance, and

biocompatibility. They are lightweight and have good high-temperature capabilities.

Application

Preferred Use in Chemical Processing and Marine Industries:

Their corrosion resistance and biocompatibility make them valuable in chemical processing applications
involving harsh chemicals or saltwater environments. They are also used in marine filtration systems.



9. Sintered Silver Filters:

Unique Properties, Features, and Effectiveness:

Sintered silver filters are remarkable for their inherent antimicrobial properties.

The embedded silver ions continuously inhibit bacterial growth on the filter surface.
They offer excellent filtration efficiency and can be self-sterilizing.

Sintered Silver Filters


Applications:

Use in Water Purification and Antimicrobial Filtration:
These filters are ideal for point-of-use water purification systems and applications requiring

antimicrobial protection in the filtration media. They are used in pharmaceutical and biotechnology
processes for sterile filtration.





10. Sintered Activated Carbon Filters:

Composition, Features, and Filtration Capabilities:

These filters combine a sintered metal structure with embedded activated carbon granules.

This combination provides excellent particle filtration and absorbs various contaminants
and odors from gases and liquids.

Sintered Activated Carbon Filters

Applications in Gas Purification and Odor Control:

Sintered activated carbon filters are employed in air and gas purification systems to remove unwanted gases,

hydrocarbons, and odors. They are used in industrial processes, chemical fume hoods, and environmental
remediation applications.




5-Factors You Should Care Choosing the Right Sintered Filter

Selecting the ideal sintered filter for your industrial application requires careful consideration of several factors:

1. Micron rating:

  This refers to the size of particles the filter can trap. Choose a micron rating smaller than the particles you want to remove.

2. Material compatibility:

 The filter material needs to be compatible with the fluids it will be exposed to. Stainless steel is a popular choice

for its corrosion resistance, but other options like bronze or nickel may be suitable depending on the application.

3. Temperature and pressure:

The filter needs to withstand the operating temperature and pressure of your process.

4. Flow rate:

The filter should allow sufficient fluid flow to meet your process needs while maintaining effective filtration.

5. Cleaning and maintenance:

Consider how easy it will be to clean and maintain the filter. Backwashing or regeneration capabilities may

be important for some applications.



By carefully evaluating these criteria, you can select a sintered filter that optimizes your industrial process

and ensures efficient, reliable filtration.



Contact HENGKO

If you need more detailed advice or wish to discuss your specific filtration needs,

please feel free to reach out to us.


You can contact us via email at ka@hengko.com.


We are here to help you select the most effective sintered filter solutions for
your industrial applications.





Send your message to us:

Write your message here and send it to us

Post time: Apr-26-2024
