Inline Flow Restrictor

Types of Inline Flow Restrictors

Inline flow restrictors are essential components in various industrial and scientific applications,

regulating the flow rate of liquids and gases. They come in various types, each with its unique

characteristics and applications. Here are some of the most common types of inline flow restrictors:

1. Capillary Tube Flow Restrictors:

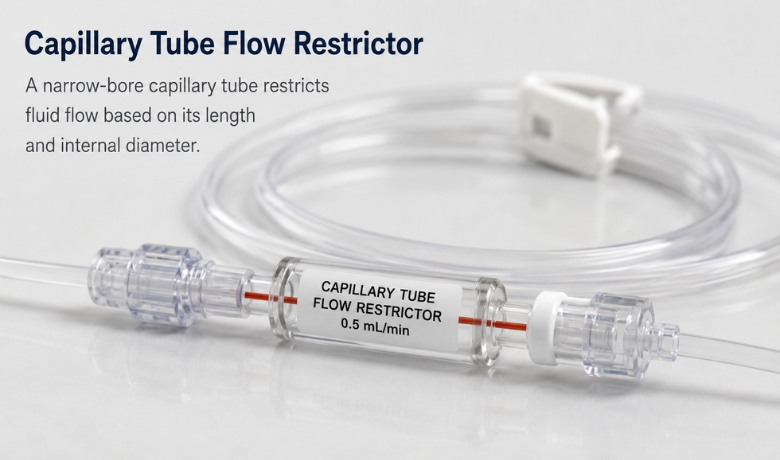

Capillary Tube Flow Restrictor

These are simple and inexpensive restrictors made from narrow-bore tubing. The flow rate is

limited by the dimensions of the tube and the viscosity of the fluid. Capillary tubes are often used

in medical applications, such as IV lines and oxygen delivery systems. However, they can be easily

clogged and are not suitable for high-pressure applications.

2. Fixed Orifice Flow Restrictors:

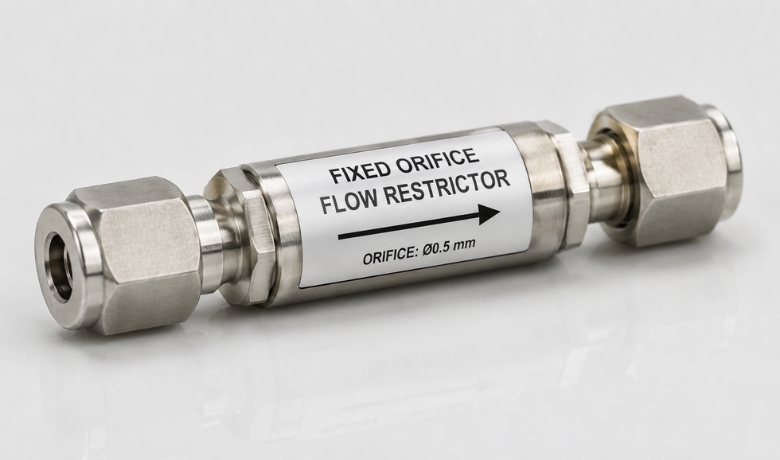

Fixed Orifice Flow Restrictor

These restrictors consist of a small hole drilled through a plate. The flow rate is controlled

by the size and shape of the hole. Fixed orifice restrictors are reliable and easy to maintain

but offer limited flexibility in adjusting flow rates.

3. Variable Orifice Flow Restrictors:

Variable Orifice Flow Restrictor

These restrictors allow for adjustments to the flow rate by changing the size of the orifice.

This can be done manually or automatically through a control valve. Variable orifice restrictors

are ideal for applications requiring precise control over flow rates.

4. Needle Valves:

Needle Valve

Needle valves are a type of valve that can be used to precisely control the flow rate of fluids

and gases. They work by using a tapered needle to block or open an orifice. Needle valves offer

excellent control over flow rates but can be more expensive and complex than other types of restrictors.

5. Flow Check Valves:

Flow Check Valve

These valves allow flow in one direction only, preventing backflow. They are often used in conjunction

with other types of flow restrictors to ensure proper flow direction and pressure regulation.

6. Integral Flow Restrictors:

Integral Flow Restrictor

These restrictors are built into another component, such as a pump or filter. They offer a compact

and integrated solution for flow control but can be difficult to replace or service.

7. Inline Flow Restrictor Combo:

Inline Flow Restrictor Combo

These restrictors combine a fixed orifice with a check valve in a single unit.

They offer the benefits of both components in a compact and easy-to-install package.

8. Quick Connect Flow Restrictors:

Quick Connect Flow Restrictor

These restrictors offer a quick and easy way to connect and disconnect flow restrictors without the need for tools.

They are ideal for applications where frequent changes or maintenance are required.

9. High-Pressure Flow Restrictors:

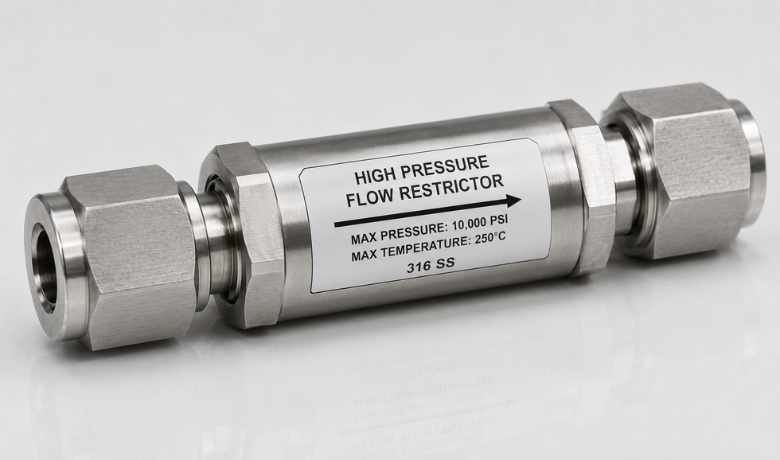

High Pressure Flow Restrictor

These restrictors are designed to handle high-pressure applications, such as those found in hydraulic

systems and industrial processes. They are made from robust materials and have special features to

ensure safe and reliable operation under high pressure.

10. Specialized Flow Restrictors:

Specialized Flow Restrictor

There are a variety of specialized flow restrictors designed for specific applications. These can include

restrictors for cryogenic fluids, high-purity gases, and corrosive chemicals.

Choosing the right type of inline flow restrictor depends on various factors, including the required flow rate,

pressure, fluid type, and desired level of control. Consulting with a flow control specialist can help you select

the most appropriate restrictor for your specific needs.
