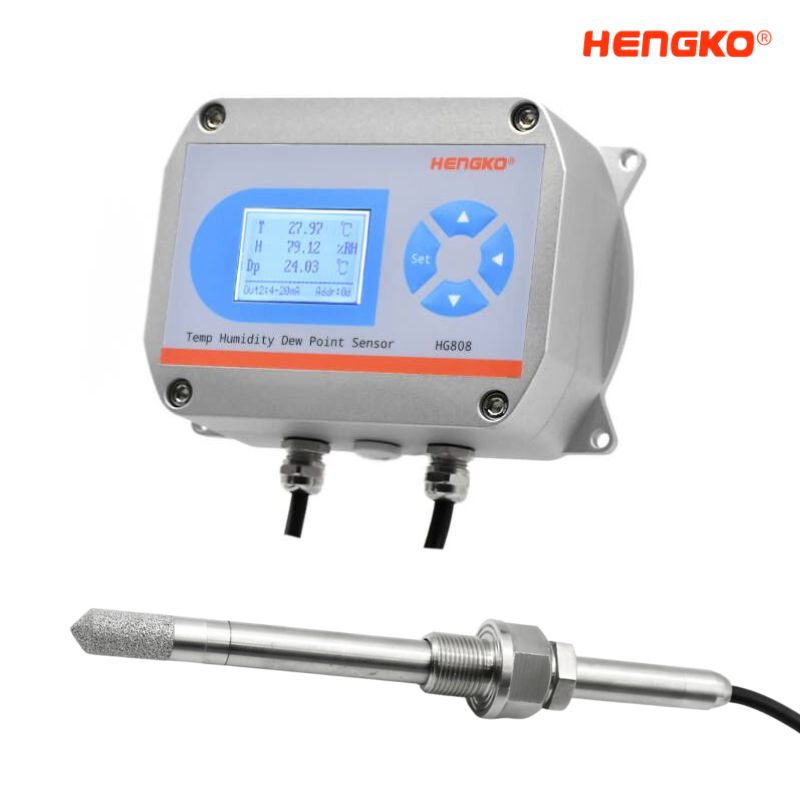

Industrial High Accuracy Dewpoint Temperature and Humidity Transmitter with Screen Display
✔ Precision Accuracy, Dew Point, Air Temperature & RH (Wall Mount Units Only)
✔ RS485 Outputs
✔ Three-line Display
✔ Wall Mount Units Only
✔ Built-in or split, two options
The HT-802C series is a low-cost precision humicap humidity transmitter that provides quick and accurate measurements of dew point, air temperature, and humidity (wall mount units only). The units come configured as a wall mount, or remote mount.
Applications are in HVAC, clean rooms, industrial processes, pharmaceuticals, and environmental chambers.
SPECIFICATIONS
Range
Dew Point: -40 to 80C (depending on non-condensation applications)
Air Temperature: -40C to 125C (Wall Mount Units)
RH: 0-100% (non-condensing)
Power：9 ~ 30 VDC
Acquisition cycle： no less than 200 ms
Communication distance： over 1000 meters
Woorkingtemperature：－20 ~ 60℃ 10 ~ 95 RH non-condensing
Storage temperature：－40 ~ 80℃
Overall power consumption: less than 0 .2W
Accuracy
Dew Point: +/-0.3C
Air Temperature: +/-v>0.3℃(full measurement range) (The factory set-up± 0 .1℃，25℃)
RH: +/-3%RH（ 25℃）
APPLICATIONS - measuring and control of air humidity at:
✔ building HVAC management
✔ building HVAC automation
✔ warehouses
✔ glasshouses
✔ manufacturers
✔ museums, archives, galleries
✔ air-conditioned rooms
✔ weather stations
✔ compressed air measurement
