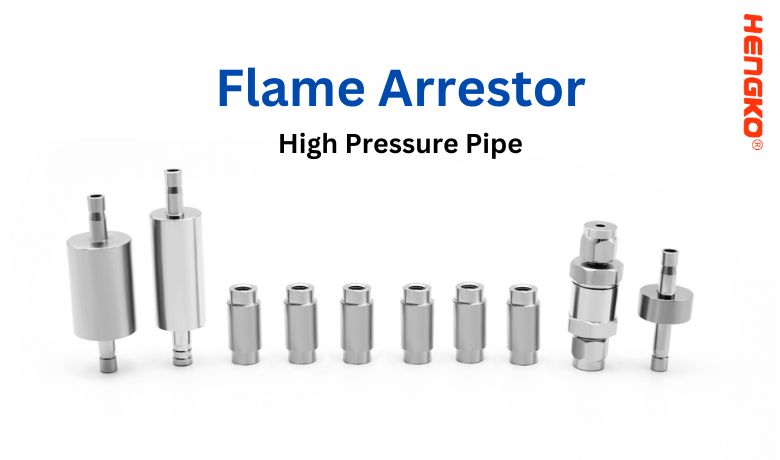

Flame Arrestor

Types of Flame Arrestor

Flashback arrestors are safety devices designed to prevent the reverse flow of gas in an oxy-fuel system.

A flashback occurs when the flame propagates back into the fuel or oxygen hoses, which can lead to an

explosion. Flashback arrestors work by quenching the flame with a wet or dry barrier, depending on the

type of arrester used.

Normally, We Classify flame arresters into two types

There are two main types of flashback arrestors:

1.  Dry flashback arrestors:

 These arrestors use a porous sintered element to extinguish the flame. The sintered element is typically made

of metal or ceramic and has a very small pore size. When a flashback occurs, the flame is forced through the

sintered element, which breaks up the flame and extinguishes it.

Dry flashback arrester



2. Liquid flashback arrestors:

These arrestors use a non-flammable liquid to extinguish the flame. The liquid is typically water or a water-based

solution. The gas is bubbled through the liquid, which cools the flame and extinguishes it.

Liquid flashback arrester

Dry flashback arrestors are more common than liquid flashback arrestors because they are less likely to freeze

or become contaminated. However, liquid flashback arrestors are more effective at extinguishing large flashbacks.

If classified by gas, there are the following types

Choosing the Right Flashback Arrester

The type of flashback arrester that is used depends on the specific application. For example, dry flashback

arrestors are typically used for oxy-fuel welding and cutting, while liquid flashback arrestors are typically used for

oxy-fuel brazing and soldering.

It is important to consult with a qualified professional to choose the right flashback arrester for your application.

Main Features of Flame Arrestor

Flame Arrestors are vital safety devices designed to prevent the propagation of flames and protect against potential explosions or fire hazards in various industrial processes. Their main features include:

1. Flame Quenching:

    Flame Arrestors are engineered with a mesh or perforated element that effectively quenches flames passing through the device. This prevents the flame from spreading further into the system.

2. Pressure Relief:

    They offer pressure relief capabilities, allowing excessive pressure to be safely vented from the system, reducing the risk of overpressure-related accidents.

3. Durable Construction:

    Flame Arrestors are constructed with robust materials that can withstand harsh operating conditions, making them suitable for use in diverse industrial environments.

4. High-Temperature Resistance:

    They are designed to withstand high temperatures produced during combustion, ensuring their effectiveness and longevity.

5. Versatility:

    Flame Arrestors can be customized to fit various applications, including pipelines, storage tanks, vent lines, and process vessels handling flammable gases or liquids.

6. Easy Maintenance:

    Many models are designed for easy inspection and cleaning, ensuring optimal performance over time.

7. Compliance:

    They are engineered to meet relevant safety standards and regulations, ensuring they contribute to a safe operating environment.

8. Wide Range of Sizes:

    Flame Arrestors are available in a wide range of sizes to accommodate different flow rates and system requirements.

9. Corrosion Resistance:

    Depending on the application, Flame Arrestors can be manufactured with materials that resist corrosion, extending their service life.

10. Passive Operation:

      These devices operate passively, requiring no external power source for their functioning, which adds to their reliability.

Overall, till now you will know Flame Arrestors play a crucial role in safeguarding personnel, equipment, and the environment from

the potential dangers of flammable gases and vapors, making them indispensable components in various industrial safety systems.
